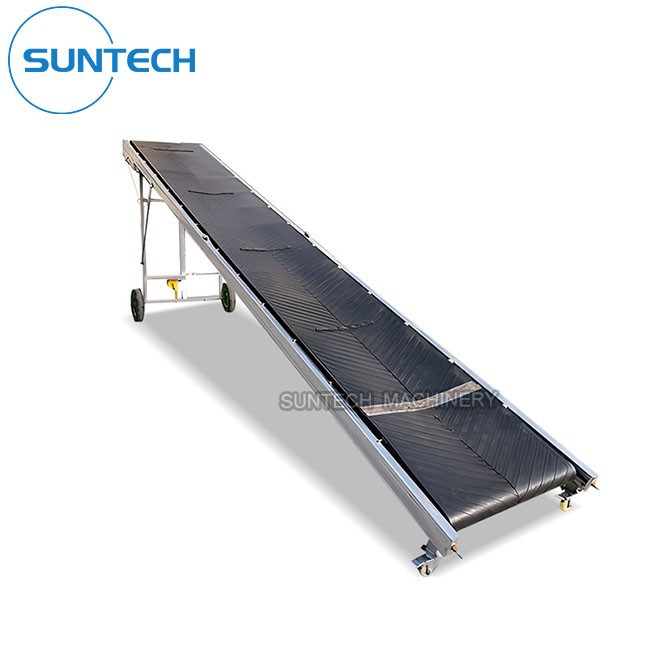

Truck Loading Chevron Conveyor Siv Tshuab

Truck Loading Chevron Conveyor Siv Tshuab





Truck loading chevron conveyor siv tshuab yog cov roj hmab siv conveyor ua nyob rau hauv hom inclined nrog adjustable qhov siab rau cov khoom loj los yog cov khoom ntim khoom thauj mus rau lub hom phiaj tsheb.



Nws txais cov qauv steel raj, uas yog lub teeb thiab muaj kev ua haujlwm zoo. Lub rotating ntaus ntawv yog ib tug hluav taws xob cov menyuam thiab yog txawm peem rau nrog ob hom kev khiav log: pneumatic log tsheb thiab roj hmab universal log. Lub kaum sab xis inclination tuaj yeem hloov kho kom ncav cuag qhov siab sib txawv.







Lub tsheb thauj khoom chevron conveyor siv tshuab yog tsim los ntawm ob qhov kawg ntawm cov menyuam, qee qhov ntau me me rau cov menyuam thiab kaw txoj siv hlua khi rau lawv. Cov menyuam uas tsav lub conveyor txoj siv kom tig yog hu ua tsav tsheb (cov menyuam kis tau tus mob); lwm cov menyuam uas tsuas yog hloov cov kev taw qhia ntawm kev txav ntawm txoj siv conveyor yog hu ua redirecting roller. Lub nruas tsav yog tsav los ntawm lub tshuab hluav taws xob los ntawm lub reducer, thiab txoj siv conveyor yog rub los ntawm kev sib txhuam ntawm lub nruas tsav tsheb thiab txoj siv conveyor. Cov menyuam tsav tsheb feem ntau yog ntsia ntawm qhov kawg ntawm qhov tso tawm kom nce traction thiab pab txhawb kev rub. Cov ntaub ntawv yog pub los ntawm qhov kawg pub thiab tsaws rau ntawm txoj siv conveyor rotating, thiab raug thauj mus rau qhov kawg ntawm qhov paug tawm los ntawm kev sib txhuam ntawm txoj siv conveyor kom tso tawm.











Muaj ntau txoj siv dav dav ntawm 500mm txog 1000mm, koj tuaj yeem xaiv qhov dav raws li koj qhov kev xav tau tshwj xeeb.



Qauv	Siv dav (mm)	Ntev (m)	Siv ceev (m / s)	Lifting Qhov siab	Lub kaum sab xis	Muaj peev xwm (m³ / h)
ST -500	500	3-25	0.8-2.0	adjustable qhov siab los ntawm lub cev muaj zog	0-30	50-100
ST -600	600	3-25	0.8-2.0	adjustable qhov siab los ntawm lub cev muaj zog	0-30	60-120
ST -650	650	3-25	0.8-2.0	adjustable qhov siab los ntawm lub cev muaj zog	0-30	100-250
ST -800	800	3-25	0.8-2.0	adjustable qhov siab los ntawm lub cev muaj zog	0-30	170-350
ST -1000	1000	3-25	0.8-2.0	adjustable qhov siab los ntawm lub cev muaj zog	0-30	270-550



Lossis koj tuaj yeem muab peb cov lus teb hauv qab no kom peb tuaj yeem xaiv tus qauv thiab kev npaj ua haujlwm rau koj.

1.Lub peev xwm uas koj xav tau?

2.Dab tsi cov khoom yuav tsum tau conveyed?

3.Qhov conveying ntev thiab qhov dav ntawm txoj siv?

4.Qhov twg yuav tsum tau kho qhov siab ntawm lub cev muaj zog?

5.Lub kaum sab xis conveying?



Cim npe nrov: tsheb thauj khoom chevron conveyor siv tshuab, Tuam Tshoj tsheb thauj khoom chevron conveyor siv tshuab manufacturers, lwm tus neeg, Hoobkas
