Stainless Hlau Hmoov Sieving Tumbler Vibrating Screen

Stainless Hlau Hmoov Sieving Tumbler Vibrating Screen





Stainless hlau hmoov sieving tumbler vibrating npo yog lub tshuab rotary sieving ua nyob rau hauv tag nrho stainless hlau s304 / s316 los yog hu rau qhov chaw nyob rau hauv S304 / 316 stainless hlau, nws yog tsuas yog siv rau cov khoom noj, tshuaj, khw muag tshuaj kev lag luam thiab lwm yam. tshuaj ntsuam xyuas lub tshuab uas simulates phau ntawv tshuaj ntsuam xyuas uas muaj daim ntawv thov dav rau txhua yam ntaub ntawv, suav nrog cov ntaub ntawv zoo thiab ultra-nplua hmoov. Nws qhov kev tshuaj ntsuam xyuas qhov tseeb, kev ua tau zoo, lub neej ntawm lub vijtsam thiab lwm yam ntsuas yog 5-10 lub sijhawm ntawm cov ntxaij vab tshaus uas siv tau.

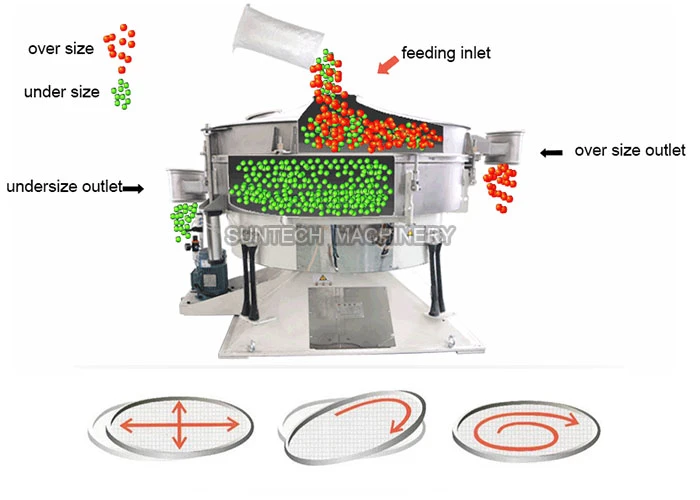

Nws yog ua tau rau mechanically simulate ib tug tib neeg tes tshuaj ntsuam. Cov ntaub ntawv yog pub los ntawm qhov nruab nrab ntawm qhov yuav luag horizontally txav lub vijtsam lub cev thiab tawg mus rau qhov chaw ib puag ncig raws tus kauv nkhaus. Nws tuaj yeem tshuaj xyuas 5 qhov ntau thiab tsawg. Txoj kab uas hla ntawm qhov screen yog 600mm ~ 2600mm. Rau ib qho khoom Graded tuaj yeem pab koj kom tau txais ob lossis ntau dua qhov muaj peev xwm ntawm tib lub vijtsam, thiab tshwj xeeb tshaj yog tsim rau puag ncig, cylindrical, daim ntawv lossis cov khoom siv zoo li niaj zaus uas ua rau txhaws thiab siab sieving precision yuav tsum tau.







1. Ua tib zoo ua raws li qhov kev txiav txim thiab txheej txheem ntawm kev tshuaj xyuas phau ntawv. Cov ntaub ntawv nthuav tawm ib qho nyob rau hauv volute kauv motion ntawm qhov screen nto thiab hu rau cov khoom. Qhov ntsuas qhov tseeb tuaj yeem ncav cuag 90-95%.

2. Txog li 5 npaug ntawm qhov tso zis ib cheeb tsam, mus txog 6 theem ntawm kev sib cais.

3. Lub tumbler vibrating npo muaj me ntsis elliptical viav vias. Tsis muaj kev vibration siab ceev thiab yuav tsis rhuav tshem cov duab ntawm cov khoom, uas zoo heev txhim kho cov txiaj ntsig ntawm cov khoom.

4. Siv cov cuab yeej ua haujlwm siab ua haujlwm zoo xws li cov khoom hnav-tiv taus elasticity thiab ultrasonic nthwv dej, thiab cov txhuam txhuam tsim los daws qhov teeb meem ntawm qhov screen qhov clogging rau feem ntau cov ntaub ntawv.

5. Lub zog amplitude ceev yog 4.5 npaug qis dua li cov khoom siv tshuaj ntsuam xyuas zoo tib yam, thiab kev pabcuam lub neej ntawm cov khoom siv tau zoo heev. Tshwj xeeb, lub neej ntawm lub vijtsam yog 3-10 npaug ntawm cov cuab yeej siv zoo tib yam, thiab tus nqi kho mob tsawg kawg nkaus.



Qauv	Txheej	Lub zog (Kw)	Sieve Effective Diameter (mm)	Thaj tsam (m2)	RPM
YBS-600	1-5	0.25	600	0.21	120-360
YBS-1000	1-5	1.5	1000	0.66	120-360
YBS-1200	1-5	2.2	1200	0.98	120-360
YBS-1600	1-5	4	1600	1.81	120-360
YBS-2000	1-5	4	2000	2.8	120-360
YBS-2400	1-4	5.5	2400	4.15	120-360
YBS-2600	1-4	5.5	2600	5.31	120-360



Tus qauv siv kev xaiv ntawm cov hmoov sieving dav dav, pls hu rau peb yog tias koj xav tau kev cob qhia kev tshaj lij ntawm koj cov ntawv thov tshwj xeeb.



Khoom siv	mesh	Peev xwm (kg / h)	Qauv
Roj hmab hmoov	24	1000	YBS-2000-2S
Chili noob	4mm ib	500	YBS-600-3S
Petroleum Coke Powder	110-120	3000	YBS-1500-2S
Nooginseng hmoov	100	300	YBS-600-4S
Quartz xuab zeb	2-200	6500	FYBS-1536
mov husk	6mm ib	4.61	YBS-2000-2S
Suav tshuaj hmoov	325	600	YBS-600-4S
pub	40	2200	YBS-1500-2S
chiv	2 hli	10000	YBS-2600-1S



Qhov txawv ntawm Tumbler Vibrating Screen nrog Rotary Vibrating Screen







Lub tumbler vibrating screen yog imitation ntawm phau ntawv tshuaj ntsuam. Cov ntaub ntawv ua rau tsis yog-linear peb-dimensional txav ntawm qhov screen, nrog rau ob qho tib si ncig thiab nce arc motion, yog li ua tiav lub hom phiaj ntawm kev tshuaj ntsuam. Lub vibrating npo teb yog tsav los ntawm ntsug kev co lub cev muaj zog uas tuaj yeem hloov cov khoom siv hmoov ua haujlwm rau hauv peb-dimensional motion ntawm kab rov tav, qaij thiab ntsug kom ua tiav lub hom phiaj ntawm kev tshuaj ntsuam.





Rau cov ntaub ntawv ntxhib zoo tib yam, cov khoom tsim tawm ntawm lub vibrating npo thiab lub tshuab nqus tsev vacuum yog qhov zoo ib yam. Rau kev tshuaj ntsuam 500 mesh cov ntaub ntawv, qhov tso zis ntawm lub tumbler vibrating npo yog ntau dua li ntawm lub teb vibrating npo. Lub viav vias npo yog 5-10 lub sij hawm ntawm lub vibrating npo; Nyob rau hauv tas li ntawd, cov zis ntawm lub zoo tib yam vibrating npo tsuas yog nruab nrog bouncing npas, uas tsis zoo tagnrho rau kev tshuaj ntsuam cylindrical thiab flaky cov ntaub ntawv. Kev tshuaj ntsuam xyuas kev ua haujlwm ntawm tumbler vibrating npo yog siab li 90%-99%. Nws siv cov pob bouncing, ultrasonic thiab lwm yam kev tshuaj ntsuam xyuas cov cuab yeej siv los txo cov mesh clogging thiab txhim kho kev soj ntsuam ntau dua.





Lub teb vibrating npo cov ntxaij vab tshaus ua haujlwm ntawm lub siab ceev kev co. Nws yog precisely vim hais tias ntawm high-ceev kev co uas nws yuav ua puas rau cov ntaub ntawv rau ib tug tej yam; thaum lub tshuab nqus tsev viav vias npo siv me ntsis elliptical rocking motion, ua raws li kev siv tes ua kev soj ntsuam, uas yuav cuam tshuam rau cov khoom siv tsawg heev. Nws yuav tsis ua kev puas tsuaj rau cov khoom, thiab ua rau muaj kev puas tsuaj me me rau cov khoom.





Lub teb vibrating screen siv lub hauv paus ntsiab lus ntawm high-speed vibration. Lub vibration yog heev puas tsuaj rau lub tshuab. Tom qab qee lub sijhawm, nws yooj yim ua rau kev vibration tawg, deformation, thiab lub vijtsam puas; thaum lub tumbler vibrating viav vias npo siv lub viav vias qis qis los xyuas kom meej lub neej kev pab cuam ntawm cov khoom siv. , cov nqi kho mob kuj tsawg.
